Productdetails:
|

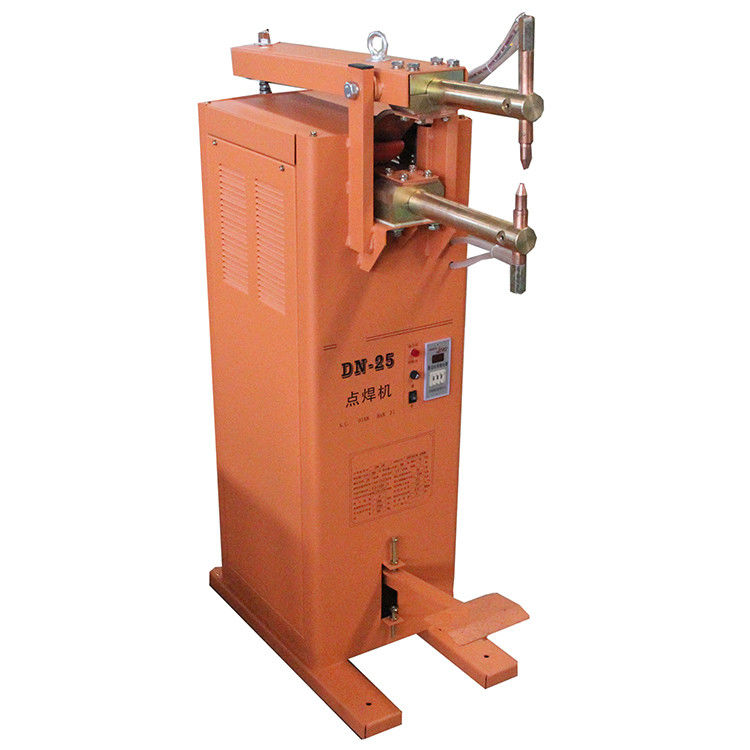

| Product name: | Stainless Steel Welding Mini Spot Welder Foot Operated Spot Welding Machine | Frequency: | 50HZ/60HZ |
|---|---|---|---|
| Dimensions: | DN 10/16/25/35 | Welding time: | 0.1-1S |
| Lead Time: | 3-5days | COLOR: | Customized |
| Machinery Test Repo: | Provided | Size: | 450mm |
| Markeren: | 60 Hz handmatige pleklassen,380V handmatige pleklassen,380V roestvrij staal spotsweismachine |
||
| Modellen Artikel 1 | DN-35 | DN-25 | DN-16 | DN-10 |
| Nominaal vermogen 50% | 35 kVA | 25 KVA | 16 kVA | 10 KVA |
| Nominale primaire vermogen | 380 V | 380 V | 380 V | 380 V |
| Nominale primaire stroom | 92A | 66A | 42.1A | 26.3A |
| Nominale werkcyclus | 10% | 10% | 10% | 10% |
| Secundaire ontladingsspanning | 2.6·4.2V | 2.3·3.55V | 1.98 ¥ 3,01 V | 1.65 ∙ 2,4 V |
| Aanpassingsrating | 4 | 4 | 4 | 4 |
| Aanpassing van de lastijd | 0 ¢ 9,99 | 0 ¢ 9,99 | 0 ¢ 9,99 | 0 ¢ 9,99 |
| Armlengte | 280 mm | 280 mm | 280 mm | 260 mm |
| Max. Lascapaciteit | 3.5+3.5mm | 2.5 + 2,5 mm | 2+2 mm | 1.5 + 1,5 mm |
| Koelwijze | Hoofdtransformer: lucht Elektrode: water | |||
